The Evolution of 3D Printing: From Prototyping to Production
3D printing in general manufacturing—formally known as Additive Manufacturing (AM)—has evolved from a prototyping novelty into a critical strategy for supply chain resilience. The dilemma for modern engineers is no longer “Can we print this?” but “Should we print this to replace casting or machining?” The answer lies in decoupling unit cost from complexity. Unlike subtractive methods where every new feature adds machine time and cost, AM allows for the production of geometries that are impossible to machine, such as internal cooling channels, while eliminating the capital risk of physical warehousing.
The technology has matured beyond the lab. The metal AM market alone is projected to reach over $21 billion by 2034, driven by aggressive adoption in high-reliability sectors like aerospace and energy, where AS9100D compliance and material traceability are non-negotiable.
Key Advantages of Additive Manufacturing
Lightweight Designs
Topology Optimization: We use software to place material strictly where structural loads require it, removing excess mass that traditional milling cannot reach.
Lattice Structures: Implementing internal meshes (e.g., gyroids or honeycombs) drastically reduces part weight while maintaining stiffness. This is critical for applications like robotic arm dynamics where inertia is a killer.
Part-Smashing (Consolidation)
Monolithic Construction: This involves redesigning multi-component assemblies—like a manifold formerly consisting of 20 welded pipes—into a single printed unit.
Reduction of Failure Points: Eliminating gaskets, fasteners, and welds creates leak-proof parts that require zero assembly labor.
Quick Prototypes
- Rapid Iteration Cycles: You can move from CAD to a physical object in hours. This “fail fast” approach validates form, fit, and function before you commit $50,000 to a permanent steel mold.
Comparison: 3D Printing vs. Conventional Manufacturing
| Feature | 3D Printing (Additive) | Conventional (Subtractive/Forming) |
| Cost | Low upfront; ideal for prototypes/low volume | High tooling cost; wins at mass production |
| Design Freedom | Unlimited complexity, lattices, moldless | Tooling limits; best for simple repeats |
| Speed | Blitzes small batches (Hours/Days) | Slow setup (Weeks), fast once rolling |
| Waste | Minimal material use (Near Net Shape) | High scrap from cutting/milling |
| Scalability | Small/medium runs, custom jobs | Crushes large-scale output |
Core Manufacturing Processes
A. Metal AM Technologies

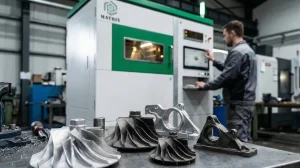

Laser Powder Bed Fusion (SLM/DMLS)
Mechanism: High-precision lasers melt metal powder layer-by-layer (microns thick).
Best For: Fine details, smooth internal channels, and high-density parts requiring isotropic properties similar to wrought metal.
Electron Beam Melting (EBM)
Mechanism: Uses an electron beam in a vacuum at high temperatures (~1000°C).
Advantage: The vacuum prevents oxidation and high heat reduces residual stress. It is superior for crack-prone refractory metals like Tungsten or brittle superalloys like TiAl.
Binder Jetting (BJT)
Mechanism: A print head deposits a binding agent onto a powder bed (no heat during print), followed by furnace sintering.
Advantage: High speed and lower cost for batch production, though you must account for sintering shrinkage (~20%).
B. Polymer & Elastomer Technologies

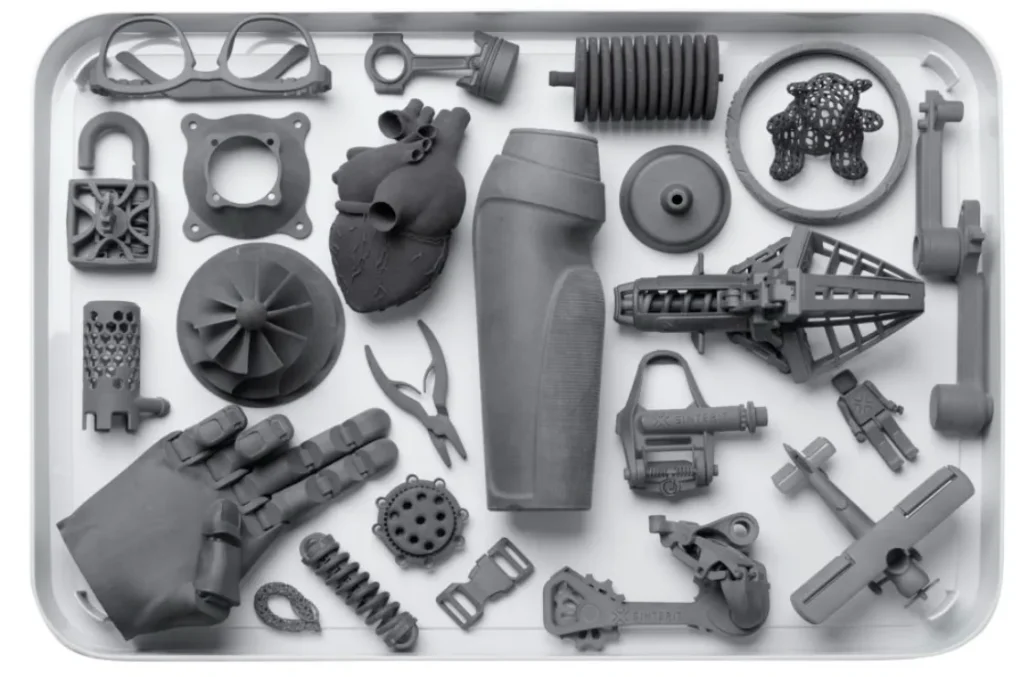

Multi Jet Fusion (MJF) & Selective Laser Sintering (SLS)
Mechanism: Fuses powder (usually Nylon PA12) using heat or lasers.
Advantage: Produces parts with no support structures, enabling “nesting” of hundreds of units in a single build chamber.
Digital Light Processing (DLP) & SLA
Mechanism: Photopolymerization—curing liquid resin with light.
Advantage: Unmatched surface finish (Ra ~2 µm) and the ability to print true elastomeric lattices that mimic foam or rubber.
Fused Deposition Modeling (FDM)
Mechanism: Thermoplastic extrusion of filaments.
Advantage: Ideal for large, rugged tooling and housings using high-performance plastics like ULTEM 9085.
Materials Ecosystem
High-Temperature Superalloys
Inconel 718: Essential for turbomachinery. AM processes can create finer grain structures than casting, improving yield strength. However, proper heat treatment is required to prevent creep and resolve internal stresses.
Refractory Metals
Tungsten & Molybdenum: Critical for semiconductor radiation shielding (collimators). AM enables complex shielding geometries that block radiation more effectively than simple lead shapes.
Engineering Thermoplastics
PA12 (Nylon): The industry standard for housings due to its balance of strength, chemical resistance, and cost.
FDM vs. SLA Strength: A standard SLA resin may have a higher tensile strength (~70 MPa) but is brittle. FDM ABS (~47 MPa) offers better ductility and toughness, making it superior for snap-fit enclosures that undergo stress.
Elastomers
Silicone: New SLA breakthroughs allow for printing 100% pure silicone for biocompatible seals, overcoming the limits of previous “silicone-like” resins.
Validated Applications & Case Studies
Semiconductor Industry
Application: Wafer tables with conformal cooling channels.
Result: Reduced thermal gradients by 83% and improved stabilization speed by 5x, directly increasing wafer throughput.
Aerospace Turbomachinery
Application: Shrouded Impellers.
Result: Companies like Matrix Technology have helped partners print Inconel impellers with low overhangs, eliminating internal supports and reducing lead time from months to weeks.
General Industrial
Application: Spare Parts.
Result: Utilizing MJF to print custom gears on-demand, eliminating inventory risk and mold storage costs.
Next Steps
The convergence of AI-driven generative design and rigorous material qualification is creating a self-reinforcing cycle of adoption. 3D printing is no longer a “nice-to-have” for R&D; it is a “must-have” for flexible, flight-ready manufacturing.
Ready to validate your part for production? Stop guessing about material equivalency and ROI.
Talk to our Matrix Technology technical engineer team.
